Various Colors And Solid Structure, PVC Coated Gabion Can Resist The High Impact From Flood And Sea Water
PVC Coated Gabion product:
PVC coated steel wire is suitable for woven gabions . Welded gabions can be used the steel wires or galvanized wires for fabrication and then be treated with PVC coating. In this way, the welded gabions can be also colorful and much more suitable for the decorative applications.The PVC coated gabion can be made into green, gray and other colors for common applications, it can also be made into orange, black and other various colors for decorative applications.
PVC coated gabion has a rigid and solid structure, which can be double twisted and triple twisted. Double twisted structure is most widely used structure, which is solid enough for common protective applications. In some harsh conditions projects, such as flood control, coastal protection, channeling lining and other projects, triple twisted structure makes the gabion a higher strength and stability structure. The high strength can resist the high impact from flood, sea water and other external forces.
PVC Coated Gabion Feature:
- adequate strength.
- cost effective and efficient .
- can be installed on a plain surface.
- No permanent drainage system is required.
- corrosion resistance.
- weather proof under natural destroy.
- simple installation and easy transportation.
- no collapse even under big scope of deforming.
- good permeation that can prevent the damage by hydrostatic.
- form a integrity with the natural environment.
PVC Coated Gabion Specification:
| product | PVC Coated Gabion |
| Color | Green, black, bule, grey etc |
| Material | low carbon steel wire , galvanized wire ,Galfan wire |
| Selvedge wire diameter | 3.4mm,4.4mm |
| Lacing wire diameter | 2.2mm,3.2mm |
| Woven type mesh size | 60mm × 80mm, 80mm × 100mm, 100mm × 12mm and so on |
| Welded type mesh size | 1/4", 1/2", 3/8", 3/4", 1", 2", 3", etc |
| Hole Shape | Hexagonal |
| Packaging | Water Proof Paper, Wooden Case And Pallet |
| Length | 2m-6m |
| Width | 1m-2m |
| Height | 0.17m-1.5m |
| Specifications of PVC coated gabions |
| Item | Length
(m) | Width
(m) | Height
(m) | Number of cells |
| PGS-01 | 2 | 1 | 0.17 m
0.23 m
0.3 m
0.5 m
1 m
1.5 m | 2 |
| PGS-02 | 3 | 1 | 3 |
| PGS-03 | 3 | 2 | 6 |
| PGS-04 | 4 | 1 | 4 |
| PGS-05 | 4 | 2 | 8 |
| PGS-06 | 5 | 1 | 5 |
| PGS-07 | 5 | 2 | 10 |
| PGS-08 | 6 | 1 | 6 |
| PGS-09 | 6 | 2 | 12 |
PVC Coated Gabion Application:
- Isolation walls
- Channel lining.
- Slope protection.
- River bank protection.
- Landscape construction.
- Planter.
- Control and guide of flood.
- Prevention of rock breaking.
- Water and soil protection.
- Bridge protection.
- Strengthening structure of soil.
- Protection engineering of seaside area.
- Seaport engineering.
- Protection of road.

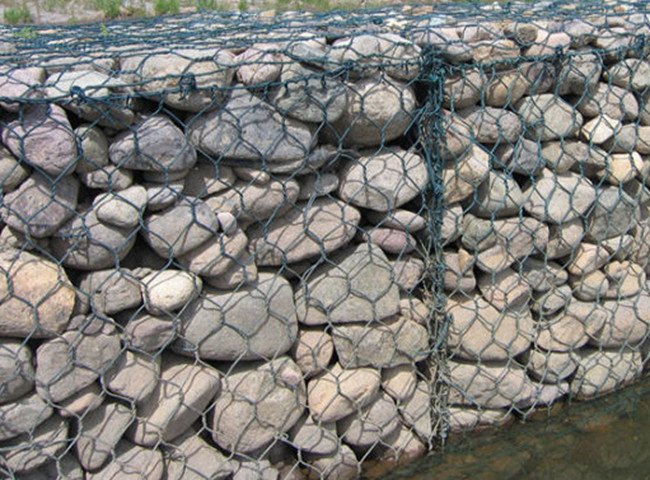

PVC coated gabion is used for riverway control

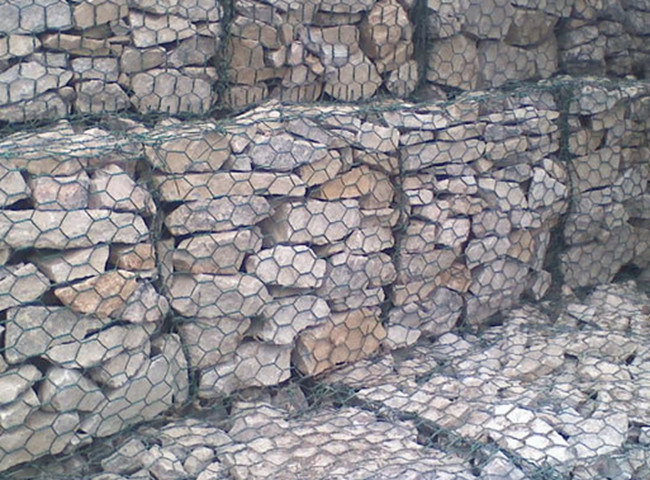

PVC coated gabion is used as retaining wall
