Sintered Mesh Popular for Water Treatment and Gas Purification
Sintered mesh is manufactured from one layer or multiple layers of woven wire meshes by a "sintering" process. The single layer woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points. Then the single layer or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded) occurs. After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding to each other. Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure. Sintered mesh can be single layer or multiple layer, according to filtration need, one layer of perforated metal can be added to reinforce the whole structure.
Sintered mesh Feature
- Excellent anti-wear property and rigidity.
- Withstand high temperature and harsh work conditions.
- Various micron ratings.
- Accurate filtration precision.
- Available in multiple layers for good mechanical strength and fine filtration.
- No media migration.
- Shapes and sizes to meet customer requirements.
- Low cost.
- Maximum protection.
- Minimum pressure drop.
- Can be rinsed repeatedly.
- Long service life.
Sintered mesh specification
- Materials: stainless steel (302, 304, 304L, 316, 316L) wire cloth, brass wire mesh, black wire cloth, galvanized wire mesh, stainless steel sintered felt.
- Disc diameter: 5–3000 mm.
- Shapes: square, rectangular, round, oval, annular, kidney shape, fan-shaped and custom designs.
- Mesh: 10–635 meshes.
- Filter precision: 2–1000 μm.
- Structure: single layer, multi-layer, edge covered, multi-layer welded, muti-layer sintered, etc.
- Weaving type:
-
- Woven: plain weaving, twill weaving, dutch weaving reverse dutch weave, and so on.
- Expanded
- Perforated
- Temperature: -40 – 600°C.
Technical Data of Sintered Wire Mesh
| Model | Nominal Filter Rating (um) | Structure Protective Layer + Control Layer + Dispersion Layer + Reinforce Layer + Reinforce Layer | Thickness
(mm) | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight (kg/m2) | Porosity (%) |
| SM5-1 | 1 | 100 + 400 × 2800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 1.81 | 360-600 | 5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4) | 40% |
| SM5-2 | 2 | 100 + 325 × 2300 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.35 | 300-590 |
| SM5-5 | 5 | 100 + 200 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.42 | 260-550 |
| SM5-10 | 10 | 100 + 165 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.00 | 220-500 |
| SM5-15 | 15 | 100 + 165 × 1200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.41 | 200-480 |
| SM5-20 | 20 | 100 + 165 × 800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 4.50 | 170-450 |
| SM5-25 | 25 | 100 + 165 × 600 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.12 | 150-410 |
| SM5-30 | 30 | 100 + 450 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.7 | 120-390 |
| SM5-40 | 40 | 100 + 325 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.86 | 100-350 |
| SM5-50 | 50 | 100 + 250 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.41 | 90-300 |
| SM5-75 | 75 | 100 + 200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.7 | 80-250 |
| SM5-100 | 100 | 100 + 150 + 100 + 12 × 64 + 64 × 12 | 1.7 | 9.1 | 70-190 |
| SM5-150 | 150 | 50 + 100 + 50 + 30 × 30 + 100 × 50 | 2.0 | 25.00 | 50-150 |
| SM5-200 | 200 | 40 + 80 + 40 + 20 × 40 + 80 × 40 | 2.0 | 26.00 | 50-150 |
| Note: The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5 mm. And it has the higher anti-pressure ability. |
Sintered mesh application
Sintered metal mesh can be applied for diffuser screens, centrifuges, breather vents, fluidized beds, chromatography, polymer, petrochemical, hydraulic filters, and more.
Sintered Metal Mesh For Filter Barrel
Sintered Metal Mesh For Aeration Pads
Sintered Metal Mesh For Leaf Filter Pressure

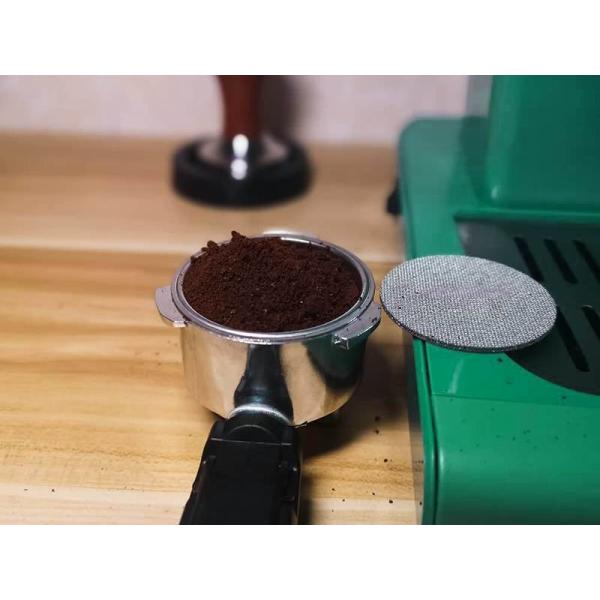

Sintered Metal Mesh For Coffee Filter
Sintered Metal Mesh For Extractor
Sintered Metal Mesh For Extruder
